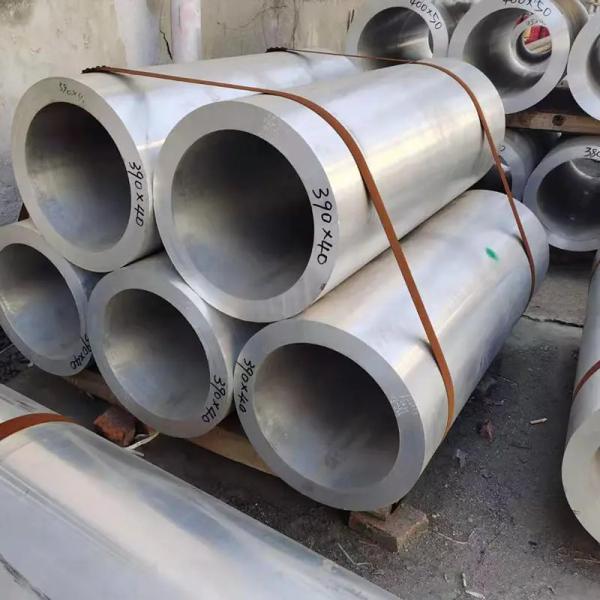

Standard Aluminum Round Pipe 7A04,7472,7475 Aluminum Tube Anodizing
Silver Custom
7A04 aluminum pipe material has a tight structure, strong corrosion
resistance and good oxidation resistance. 7A04 aluminum tube has
good mechanical properties, high strength, heat-treatable alloy,
and easy processing.
7A04 aluminum tube combines the characteristics of high strength of
7000 series and excellent anodizing performance of 6000 series. The
anodizing effect is good, the surface color is saturated and
bright, and the surface is rich in metallic luster.
1, Product Parameters :
1)Product Specification and Steel Grade
| Type | 7A04 Aluminum Pipe Tube |
|
| 1000 Series | 1050 1060 1070 1100 |
| 2000 Series | 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 |
| 3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 |
| 4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A |
| 5000 Series | 5052, 5083, 5754, 5005, 5086,5182 |
| 6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 |
| 7000 Series | 7075,7050,7A04,7472,7475 |
| Specifcation for round pipe | OD: 15mm-160mm; WT: 0.3-50mm; Length: 1-12m |
| Specification for square pipe | SIZE:7X7mm- 150X150 mm; WT: 1-40mm; Length:1-12m |
| Surface | Mill finished, anodized, powder coating, Sandblas, etc |
| Temper | H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38
H11. |
| MOQ | 5ton, We can accept sample orders. |
| Delivery port | Shanghai, Tianjin, Qingdao, Ningbo, Guangzhou, etc. |
| Packaging Detail | Standard export packaging, various transportation, according to
customer needs |
2)Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: | Others: | Al: Min. |
| Each | Total |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99 |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | - | - | 0.1 | - | 0.05 | 0.15 | remainder |
| 2A12 | 0.50 | 0.50 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | - | 0.30 | 0.15 | 0.05 | 0.15 | remainder |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3A21 | 0.6 | 0.7 | 0.20 | 1.0-1.6 | 0.05 | - | 0.10 | 0.15 | 0.05 | 0.05 | remainder |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.05 | remainder |
| 5A06 | 0.4 | 0.4 | 0.4 | 0.5-0.8 | 5.8-6.8 | - | 0.20 | 0.02-0.10 | 0.05 | 0.1 | remainder |
| 5A02 | 0.4 | 0.4 | 0.4 | 0.15-0.4 | 20.-2.8 | - | - | 0.15 | 0.05 | 0.05 | remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | - | 0.05 | 0.15 | remainder |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 | remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.05 | remainder |
| 7A04 | 0.5 | 0.5 | 1.4-2.0 | 0.2-0.6 | 1.8-2.8 | 0.1-0.25 | 2.0-7.0 | 0.1 | 0.05 | 0.05 | remainder |
Aluminum Coil Workshop:
Aluminum Pipe Application:
7A04 aluminum pipe tube has high strength, acceptable plasticity in
the annealed and quenched state, poor corrosion resistance, poor
tensile stress corrosion resistance, and good machinability in the
hard state.
7A04 aluminum pipe tube is generally used for electronic home
appliances, such as various busbars, wiring, and electrical
fixtures.
7A04 aluminum pipe tubes can be used in the aerospace field,
aerospace fixtures, main stress-bearing parts on aircraft, screws,
stress-bearing members, beam stringers, partition frames, wing
ribs, and landing gear.
7A04 aluminum pipe tube can be used for conductors, electrical
components, refrigerators, air conditioners, etc.
